UPS Users: Beware! One Oversight Could Lead to Electric Shock Hazard!

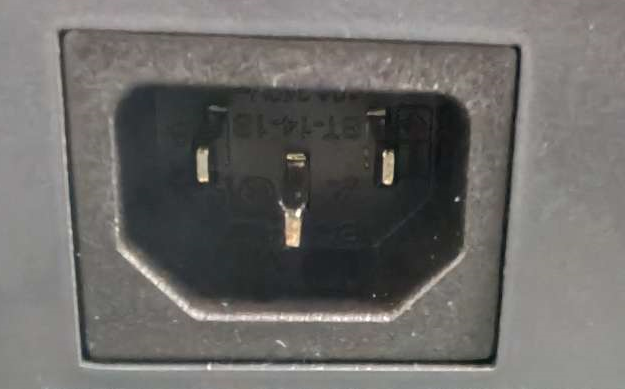

• When your UPS is discharging stored energy, have you considered – could lethal voltage remain at its input terminals?
• Anbotek Lab Data Reveals: Shock incidents due to failed feed protection surged 67% in 2024! How to ensure safety? The “Feed Protection Test (FFF.1)” in UL 1778 is the critical solution!
• Mitigate feed-through risks, eliminate hazards, and ensure end-user safety through comprehensive product testing!

UL 1778 Standard Requirement (Feed Protection):

During UPS operation in stored energy mode, excessive contact current between any input terminal pair is prohibited. Contact current measurement is exempt if the measured open-circuit voltage is ≤ 30V RMS (42.4V peak, 60V DC).

When the UPS is in stored energy mode and its input terminals/plug are disconnected (under no-load or full-load conditions), the following must be satisfied:
a) Under normal and any single fault condition, current measured between any two user-accessible input terminals using the circuit in Appendix U2 shall not exceed 3.5mA.
b) If protection is provided by an internal system, it must activate within 1 second of input disconnection.

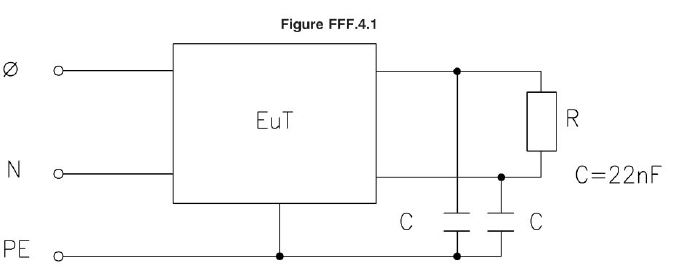

Note: Compliance must be verified under normal, abnormal operating conditions, and with added capacitance as shown in the following circuit diagram (referencing the feed value).
